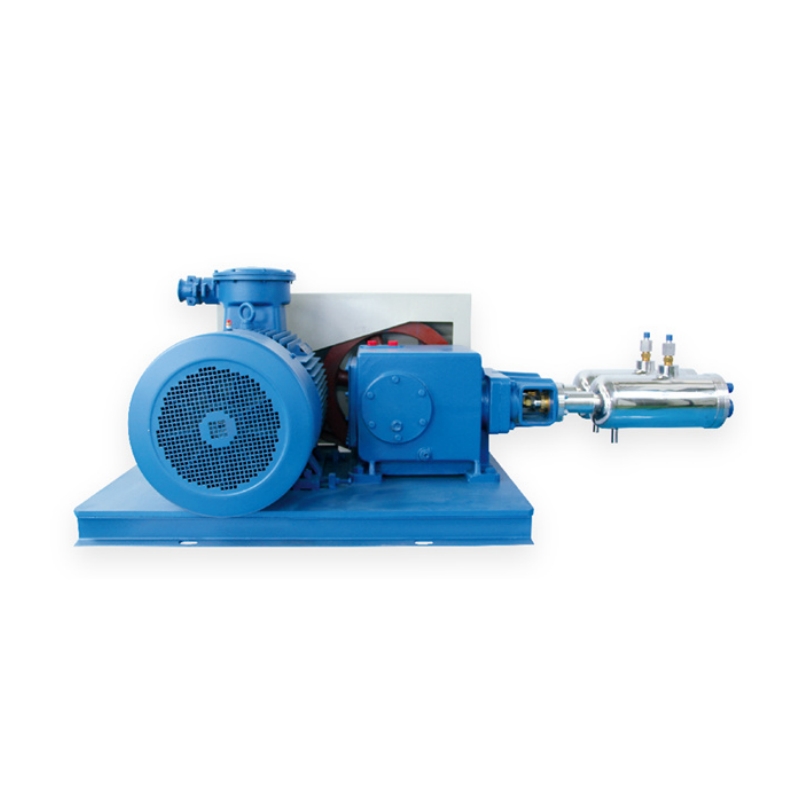

High‑Pressure Cryogenic Piston Pump for Ultra‑Low Temperature Liquid Transfer

Cryogenic Transport Systems Reciprocating Pumps

Cryogenic Filling Station Pump cryogenic liquid transfer cryogenic piston pump High‑Pressure Cryogenic Pump High‑Pressure Pumping Equipment Industrial Gas Pump LOX/LIN/LAR/LNG Pump Ultra‑Low Temperature Pump

The High‑Pressure Cryogenic Piston Pump is a precision‑engineered pumping system designed for the reliable transfer of cryogenic liquids such as liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas. Built to deliver stable high‑pressure output, it features a robust reciprocating piston mechanism, advanced sealing technology, and corrosion‑resistant materials to ensure long‑term durability and minimal leakage under extreme low‑temperature conditions. This pump is widely used in industrial gas supply, cryogenic filling stations, energy distribution, and processing facilities requiring consistent, high‑pressure cryogenic liquid transfer.

Request a Quote

Description

Parameters

Files

Product Overview

The High-Pressure Cryogenic Piston Pump is a high-efficiency reciprocating pump designed for the transfer of low-temperature liquids such as liquefied natural gas (LNG), liquid nitrogen (LN₂), liquid argon (LAr), and liquid oxygen (LOX). It delivers high pressure and high flow, ensuring stable, safe, and efficient operation during storage, transportation, and industrial processes. Its robust design allows for long-term reliable operation, making it ideal for applications requiring precision and high reliability.

Working Principle

The pump works by reciprocating piston motion, which pressurizes the cryogenic liquid and delivers it to the system piping.

During the compression stroke, the piston continuously squeezes the liquid in the pump chamber.
Optimized flow channelsand high-performance sealing systems maintain stable flow and pressure output.
This principle ensures efficient and uniform liquid transferat cryogenic temperatures while minimizing energy loss and leakage risk.

Key Features

High-Pressure Output:Capable of delivering extremely high discharge pressure, meeting demanding industrial requirements.
Reliable Long-Term Operation:Designed for continuous, fault-free operation under extreme conditions.
Multiple Flow Options:Adjustable flow rates to suit different operational needs.
Explosion-Proof Motor Options:Ensures safe operation in flammable or explosive environments.
Versatile Compatibility:Suitable for a wide range of low-temperature liquids and various high-pressure applications.

Applications

Cryogenic Liquid Transfer:High-pressure delivery of LNG, LN₂, LAr, LOX, and other low-temperature media.
Energy & Petrochemical Industry:High-pressure pumping in petroleum, natural gas, and chemical production processes.
Marine & Terminal Operations:Efficient liquid transfer in ships, terminals, and port facilities.
Storage & Transportation:For pipelines, storage tanks, and transport systems requiring high-pressure operation.

Model	Flow Rate (L/h)	Outlet Pressure (MPa)	Net Positive Suction Head (m)	Motor Power (kW)	Continuous Operation Time
BP400/450	400	25	1.2	7.5–18	≥20000 hr
BP800/450	700	25	1.2	11–37
DBP1500/250	1500	25	1.5	22
DBP2500/250	2500	25	1.5	37
DBP3500/250	3500	25	1.5	45
TBP8000/350	8000	35	1.5	110
DBP-3000/800	3000	80	1.5	90
Applicable Medium	Liquefied Natural Gas (LNG), Liquid Nitrogen (LN₂), Liquid Argon (LAr), Liquid Oxygen (LOX)
Application	1. Explosion-proof motor for flammable and explosive media
Application	2. Maximum flow rate for certain media can reach 12000 L/h, and maximum outlet pressure can reach 80 MPa
