Liquid Hydrogen Pump

High‑Efficiency Cryogenic Pump for Liquid Hydrogen Transfer

Liquid Hydrogen Equipment Liquid Hydrogen Pump PRODUCTS

Aerospace Hydrogen Pump Clean Energy Hydrogen Pump Cryogenic Transfer Pump Fuel Cell Hydrogen Transfer High‑Efficiency Hydrogen Pump Hydrogen Circulation Equipment Industrial Cryogenic Equipment Liquid Hydrogen Pump Ultra‑Low Temperature Pump

The Liquid Hydrogen Pump is a high‑performance cryogenic pumping system engineered for the safe and efficient transfer of liquid hydrogen at ultra‑low temperatures. Designed with advanced sealing technology, hydrogen‑compatible materials, and precision control mechanisms, it delivers stable flow and reliable pressure under demanding operating conditions. The pump minimizes hydrogen losses, ensures leak‑tight integrity, and supports continuous or intermittent operation. It is widely used in hydrogen energy projects, aerospace systems, fuel cell technology, and industrial cryogenic applications requiring dependable hydrogen circulation and transfer.

Request a Quote

Description

Parameters

Files

Product Overview

The liquid hydrogen pump is a critical piece of equipment designed for the transfer and pressurization of ultra-low temperature liquid hydrogen. It is widely used in liquid hydrogen refueling stations and other cryogenic engineering applications.

The pump features a proven reciprocating pressurization design, enabling continuous and stable delivery of liquid hydrogen under extreme low-temperature conditions. It meets the high-pressure, high-reliability, and high-safety requirements of hydrogen fueling systems.

The pump supports multi-cylinder configurations to accommodate different flow rates, ensuring efficient operation of hydrogen refueling and storage/transport systems.

Working Principle

The liquid hydrogen pump operates on the reciprocating pressurization principle. Pistons, driven by the actuator mechanism, move cyclically within the pump cylinders to draw in, compress, and discharge liquid hydrogen.

The pump’s cold end uses a vacuum-jacketed insulation design to minimize heat leak, ensuring stable ultra-low temperature operation. The integrated lubrication and drive system maintains clean, high-pressure hydrogen delivery while extending pump life and the service life of sealing components.

Key Features

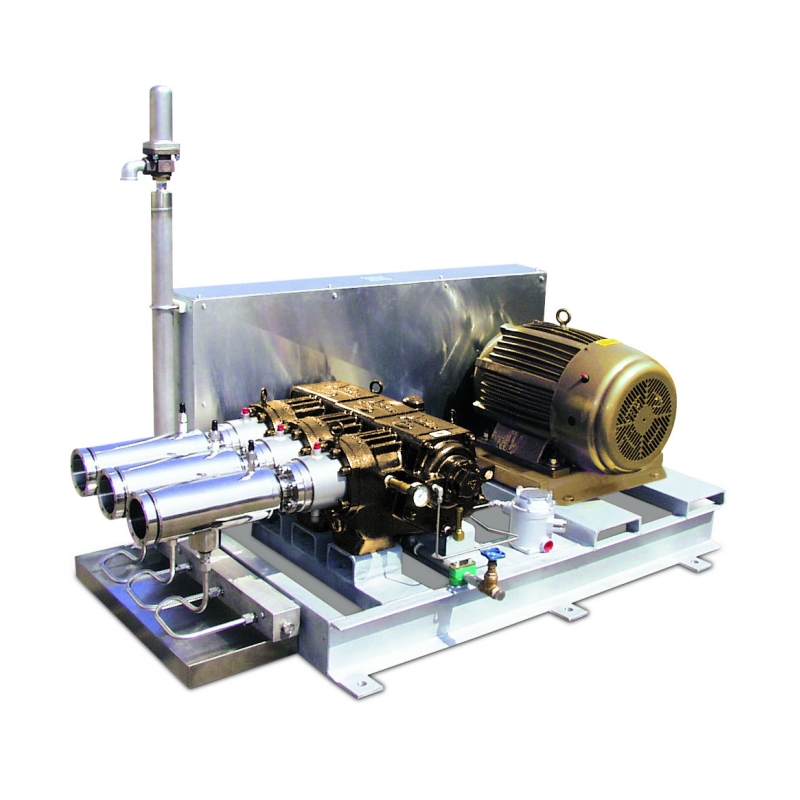

Multi-Cylinder Configuration:Cylinders can be combined in different arrangements to meet various flow requirements.
Vacuum-Jacketed Cold End:Reduces heat leakage and maintains low-temperature performance under liquid hydrogen conditions.
Integrated Oil-Lubricated Drive:Ensures clean operation without the need for an external oil reservoir.
Optimized Sealing Design:Cold end and seals are engineered to extend service life significantly.

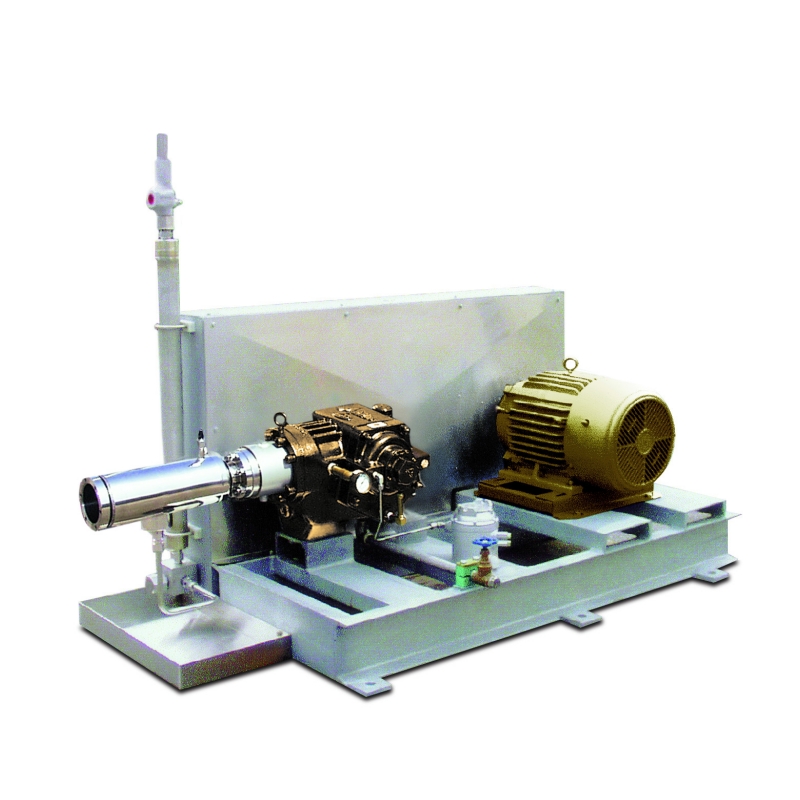

Skid-Mounted Layout:Compact, safe, and easy to install and maintain.

Applications

Liquid Hydrogen Refueling Stations:Provides high-pressure, stable liquid hydrogen delivery for fuel dispensing.
Hydrogen Energy Infrastructure:Supports ultra-low temperature handling in hydrogen production, storage, transport, and supply systems.
Liquid Hydrogen Storage & Transfer Systems:Ensures continuous operation of storage tanks, pipelines, and pressurization systems.
Hydrogen Demonstration & Research:Used in hydrogen energy experiments and pilot projects for ultra-low temperature hydrogen transfer.
Cryogenic Engineering & Ultra-Low Temperature Fluid Systems:Suitable for reliable transfer of liquid hydrogen and other cryogenic fluids.

Maximum Flow Rate	7 m3/h
Operating Pressure	120 MPa
Fluid	Liquid Hydrogen (LH₂)
Temperature	-269°C
Applications	Suitable for 30 MPa, 45 MPa, and 70 MPa hydrogen refueling stations
