Dry Ice Block Press Machine

High‑Efficiency Machine for Dry Ice Block Compression

Cryogenic Equipment Dry Ice Equipment PRODUCTS

Automated Cryogenic Block Machine CO₂ Conversion System Dry Ice Block Press Machine Dry Ice Compression Equipment Food Processing Dry Ice Blocks Industrial Dry Ice Block Production Logistics Dry Ice Production Medical Dry Ice Supply Pharmaceutical Dry Ice Blocks

The Dry Ice Block Press Machine is a specialized cryogenic equipment designed to compress dry ice pellets into solid blocks of various sizes and densities. Using hydraulic or mechanical pressing technology, it ensures uniform block formation with high durability and consistent quality. Built with stainless steel construction, automated controls, and integrated safety systems, the machine provides efficient, reliable, and energy‑saving performance. It is widely used in food processing, cold chain logistics, industrial cleaning, medical applications, and scientific research requiring stable dry ice blocks for preservation and transport.

Request a Quote

Description

Parameters

Files

Product Overview

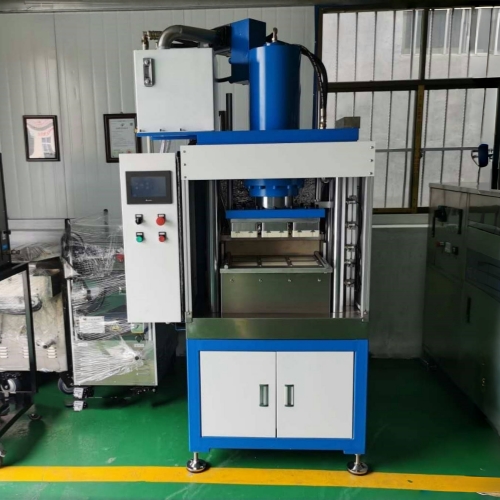

The Dry Ice Block Press Machine is designed to compress dry ice pellets into high-density dry ice blocks. Using an electric hydraulic pressing system, the machine applies stable and powerful pressure to compact dry ice pellets into solid blocks with uniform density and strong structure.

The machine features a compact vertical cabinet design, requiring minimal floor space while allowing easy installation, operation, and maintenance. The compressed dry ice blocks have excellent density and improved storage stability, making them suitable for applications such as dry ice blasting, cold chain transportation, and industrial cooling. It is a practical and efficient piece of equipment for dry ice processing.

Working Principle

The dry ice block press machine uses a hydraulic system to drive the pressing unit. Dry ice pellets are fed into a mold where stable pressure is applied to compress them into dense block-shaped dry ice.

During the pressing process, the hydraulic system provides continuous and stable force to ensure uniform density and structural consistency. An automatic control system monitors and regulates the pressing operation, allowing adjustment of pressing parameters and block thickness to produce dry ice blocks suitable for different application requirements.

Key Features

Compact Structure:Vertical cabinet design saves floor space and keeps the machine clean and easy to maintain.
Electric Hydraulic System:Provides stable and reliable pressure without the need for compressed air.
User-Friendly Operation:Simple control interface combined with a PLC system for convenient operation.
Adjustable Block Thickness:Allows flexible production of dry ice blocks to meet various application needs.
Durable Construction:Strong and reliable structure suitable for long-term continuous operation.
Safe and Reliable Design:Built for stable performance with easy maintenance and high working efficiency.

Applications

Dry Ice Cleaning:Produces high-density dry ice blocks used as raw material for dry ice blasting systems.
Cold Chain & Refrigeration:Used for low-temperature transport and storage of food, pharmaceuticals, and other temperature-sensitive products.
Industrial Cooling:Provides cooling solutions for various industrial processes.
Events & Entertainment:Used to create fog and visual effects for catering events, performances, and stage productions.
Laboratory & Research:Provides a stable dry ice source for laboratory cooling and cryogenic experiments.

Parameter	Unit	EN202-10T	EN302-20T	EN302-30T	EN302-40T	EN302-50T	EN302-60T	EN302-80T	EN302-100T	EN302-150T
Nominal Pressure	Ton	10	20	30	40	50	60	80	100	150
System Pressure	MPa	13	13	13	20	25	25	25	25	25
Max Stroke	mm	300	350	350	350	350	300	300	300	300
Opening Height	mm	450	500	550	550	550	500	500	600	600
Worktable Height from Ground	mm	820	850	850	850	850	900	1000	1100	1100
Effective Table Width (Between Columns)	mm	400	500	600	600	600	600	700	850	850
Effective Table Depth (Front–Back)	mm	350	400	500	500	500	500	600	650	650
Main Cylinder Speed – Fast	mm/s	100	160	160	160	150	135	110	110	110
Main Cylinder Speed – Feeding	mm/s	20	15	15	15	5	4	3	2.5	2.5
Main Cylinder Speed – Return	mm/s	100	160	160	160	150	100	100	100	100
Motor Power	kW	2.2	2.2	3.7	3.7	3.7	5.5	7.5	7.5	7.5
Machine Weight	kg	450	580	650	860	1150	1300	1450	1650	1850
