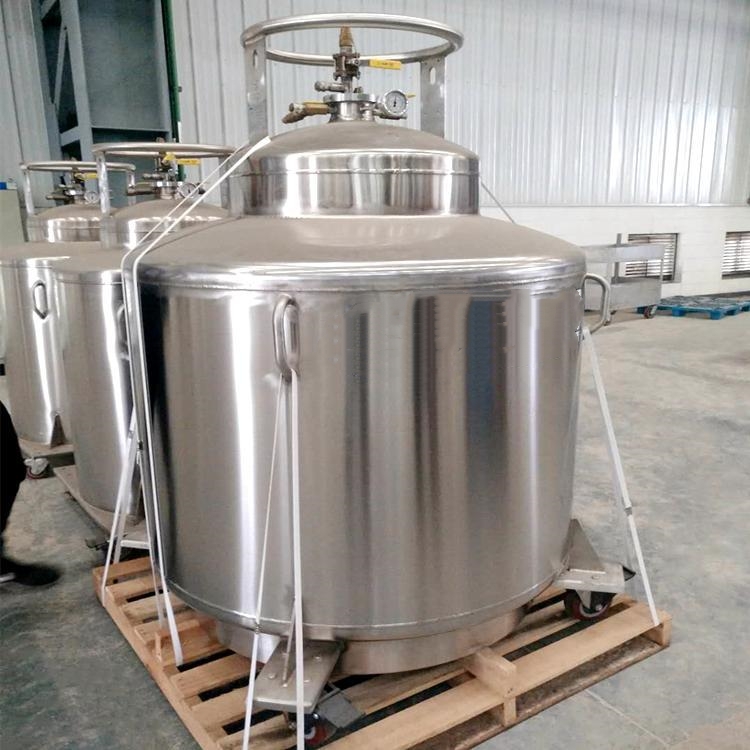

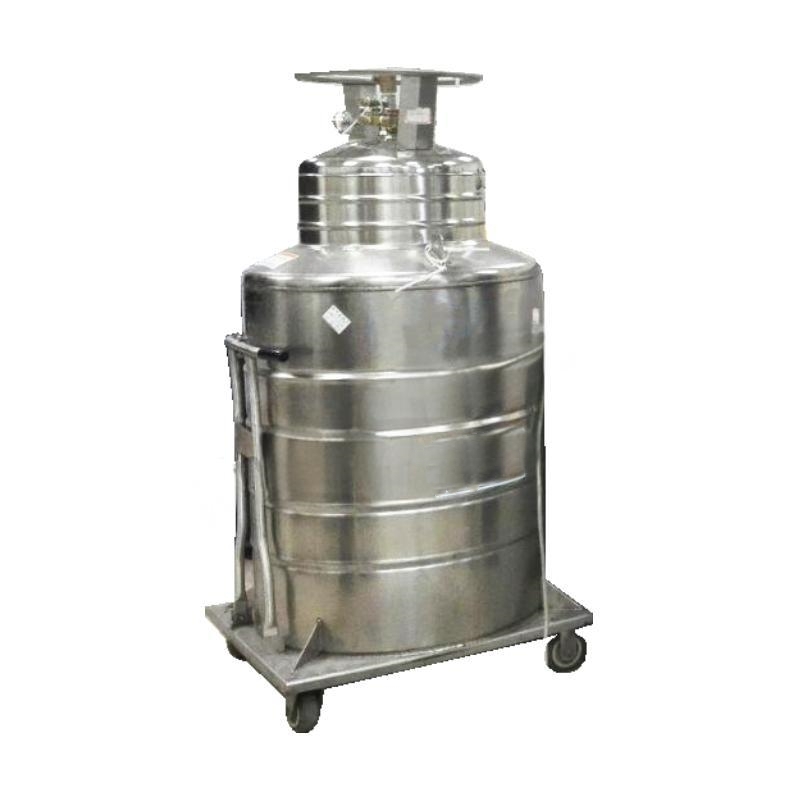

Liquid Hydrogen Dewar

Product Overview

The liquid hydrogen Dewar is a cryogenic container designed for the storage, transport, and distribution of liquid hydrogen. It features a systematic low-temperature insulation design to minimize hydrogen evaporation and losses during use.

This container balances safety, reliability, and operational convenience, making it ideal for medium- to short-term storage and mobile applications. It is suitable for hydrogen refueling stations, laboratories, research facilities, and various cryogenic engineering environments.

Working Principle

The liquid hydrogen Dewar uses an efficient vacuum-insulated structure, creating a high-vacuum space between the inner and outer vessels to effectively reduce heat conduction and convection.

Combined with vapor-cooled multi-layer shields and low-temperature condensation adsorption to maintain the vacuum, the system further reduces heat transfer from the environment, significantly lowering liquid hydrogen boil-off. This ensures stable low-temperature performance and safe storage and transport of hydrogen.

Key Features

• All-Stainless Steel Construction:High-strength and low-temperature resistant, suitable for extreme cryogenic conditions.
• High-Vacuum Multi-Layer Insulation:Effectively reduces heat leak and liquid hydrogen evaporation.
• Integrated Piping Design:Built-in vacuum-insulated storage and delivery pipelines for high system integration.
• Bayonet-Style Pipe Connections:Minimizes thermal conduction at connections, improving overall cryogenic performance.

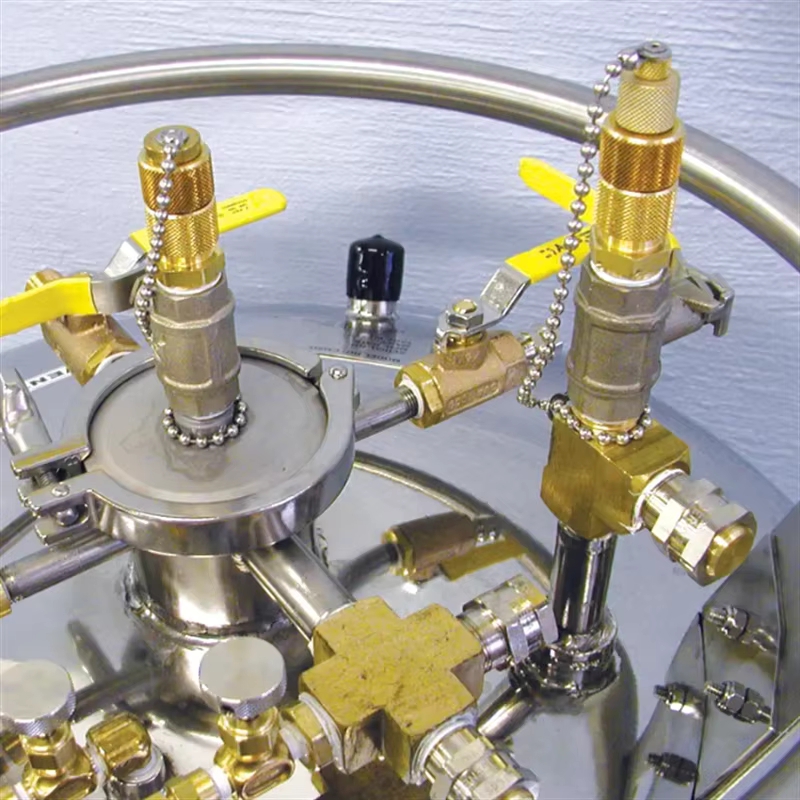

• Multiple Valves and Gas Ports:Ensures safe operation of valves and system components.
• Compact Structure:Small footprint, convenient for site layout and mobile operations.
• Comprehensive Safety Design:Equipped with safety valves and standardized venting interfaces for reliable operation.

Applications

• Hydrogen Refueling Stations:Provides storage and buffering to ensure stable liquid hydrogen supply during refueling.
• Hydrogen Demonstration & Experimental Systems:Offers reliable liquid hydrogen storage and transport solutions for research and pilot projects.
• Liquid Hydrogen Transport & Distribution:Supports medium- to short-distance transport and on-site distribution of liquid hydrogen.
• Cryogenic Engineering & Ultra-Low Temperature Experiments:Supplies stable liquid hydrogen environments for laboratory experiments and engineering projects.
• Hydrogen Research & Testing Platforms:Used in research institutions and test facilities for liquid hydrogen storage and applications.
