Cryogenic Insulated Cylinder

Reliable Cylinders for Transporting Liquefied Gases at Ultra-Low Temperatures

Cryogenic Insulated Cylinder Cryogenic Storage Tanks PRODUCTS

A Cryogenic Insulated Cylinder is a specialized container designed to store and transport liquefied gases at extremely low temperatures, typically below -150°C. These cylinders feature double-walled construction with a vacuum and multi-layered insulation to minimize heat transfer and prevent evaporation. They are essential for safely handling gases like liquid nitrogen, oxygen, and argon in various industrial, medical, and scientific applications.

Request a Quote

Description

Parameters

Files

Product Overview:
Low-temperature gas cylinders are designed for storing, transporting, and utilizing liquid argon, oxygen, nitrogen, carbon dioxide, and liquefied natural gas. Equipped with evaporators for continuous gas supply, they feature international standard connectors and imported valves, customizable for safe transportation. These cylinders are widely used in industries such as chemical, mechanical, shipbuilding, healthcare, electronics, materials, energy, research, and aquaculture. The DPL insulated liquid steel cylinder is part of the DPL cryogenic cylinder series, meeting national standards, and ensures high gas purity through its stainless steel construction.

Product Features:

1. The support system of the inner container is made of stainless steel to achieve low heat loss and high stability.

2. Easy to use, allowing independent operation by a single person.

3. Stores pure cryogenic liquids with a large storage capacity for gas.

4. The cylinder features a high-performance insulation system, ensuring low pressure rise rates in a full liquid state, usually eliminating the need to use the vent valve for pressure relief.

5. Combined use of external pressurizers and built-in vaporizers provides continuous gas or liquid supply within designed consumption limits without needing an additional external vaporizer.

Technical Specifications:

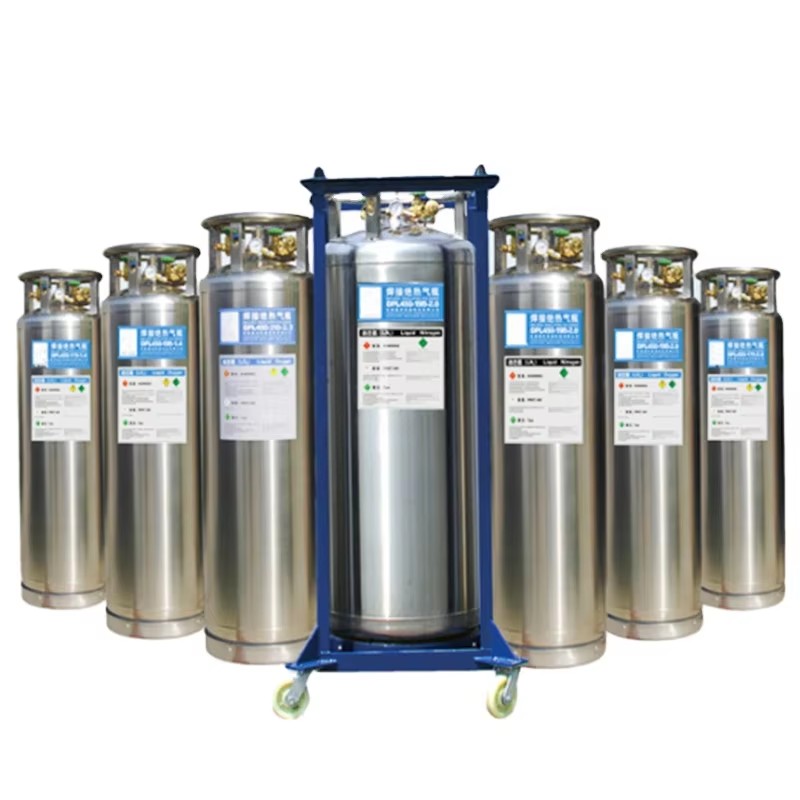

Industria welded insulated cylinders(110L-240L)
Specifications		DPL450-V-1.37					DPL450-V-2.05				DPL450-V-2.88			DPL550-240-0.12
Geometric Volume（L）		110	175	195	210	236	110	175	195	210	175	195	210	240
Effective Volume（L ）		99	157.5	175.5	189	212.4	99	157.5	175.5	189	157.5	175.5	189	230
Working Pressure（MPa）		1.37					2.05				2.88			0.12
Relief valve setting（MPa）		1.59					2.41				3.45			0.15
Rupture disc setting（MPa）		2.6					3.6				5.17			0.8
Outside diameter（mm）		Φ508												Φ610
Highly		1076	1487	1613	1707	1872	1076	1487	1613	1707	1487	1613	1707	1545
Empty weight（kg）		90	117	124	131	141	105	135	144	148	156	160	173	143
Filling Weight(kg)	LO2	112	179	200	215	242	112	179	200	215	~179	200	215	~~
	LN2	80	127	142	153	172	80	127	142	153	~127	142	153	186
	LAr	138	220	245	264	297	138	220	245	264	~220	245	264	~~
	LNG	42	67	74	80	90	~~	~~	~~	~~	~~	~~	~~	~~
	LCO2	110	~~	~~	~~	~~	110	175	195	210	163	181	195	~~
NER（%Per Day）≦		2.74	2.1	2.02	1.99	1.96	2.74	2.1	2.02	1.99	2.1	2.02	1.99	1.96
Level gauge		Float/ Digital display

Industria welded insulated cylinders(410L-1000L)
Specifications		DPL700-V-1.35			DPL700-V-2.3		DPL700-V-3.17		DPL900-V-2.45
Geometric Volume（L）		410	455	500	455	500	455	500	800	1000
Effective Volume（L ）		369	410	450	410	450	410	450	736	920
Working Pressure（MPa）		1.35			2.3		3.17		2.45
Relief valve setting（MPa）		1.59			2.76		3.79		2.94
Rupture disc setting（MPa）		2.6			3.9		5.4		3.9
Outside diameter（mm）		×Phi;766							×Phi; 970
Size（L×W×H） mm		With wheels	With wheels	With wheels	With wheels	With wheels	With wheels	With wheels	~~	~~
		1100×860	1100×860	1100×860	1100×860	1100×860	1100×860	1100×860
		×1865	×1980	×2095	×1985	×2095	×1985	×2095
		No wheel	No wheel	No wheel	No wheel	No wheel	No wheel	No wheel	No wheel	No wheel
		860×860	860×860	860×860	860×860	860×860	860×860	860×860	1114×1089	1114×1089
		×1785	×1900	×2015	×1900	×2015	×1900	×2015	×2079	×2394
Empty weight（kg）		~354	~367	~381	~427	~504	~481	~542	~905	~1005
Filling Weight(kg)	LO2	~~	~467	~513	~467	~513	~467	~513	~839	~1049
	LN2	~~	~332	~365	~332	~365	~332	~365	~596	~745
	LAr	~~	~573	~630	~573	~630	~573	~630	~1030	~1288
	LNG	~157	~175	~192	~~	~~	~~	~~	~~	~~
	LCO2	~~	~~	~~	~444	~488	~413	~454	770	962
NER（%Per Day）		1.8	1.8	1.7	1.8	1.7	1.8	1.7	1.7	1.7
Level gauge		Float / Digital display

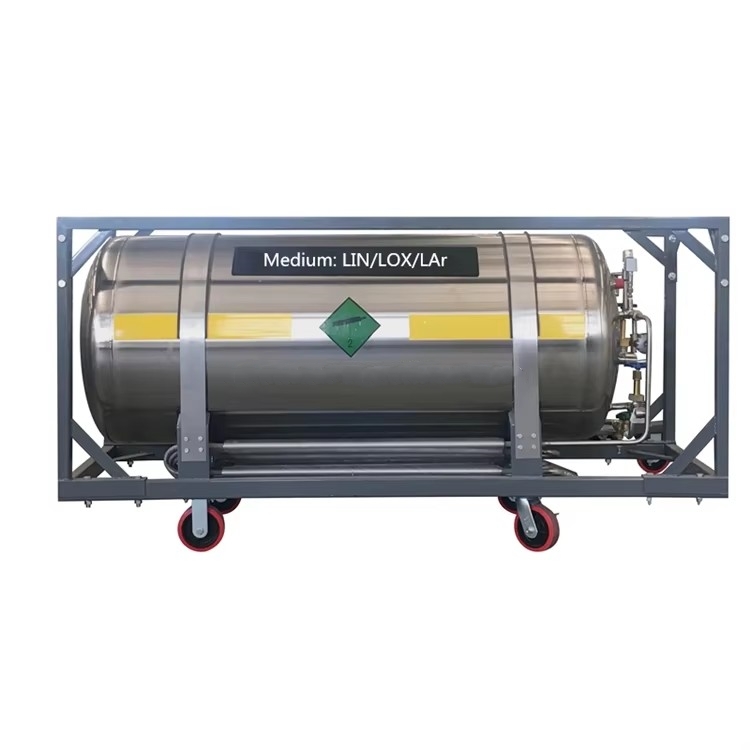

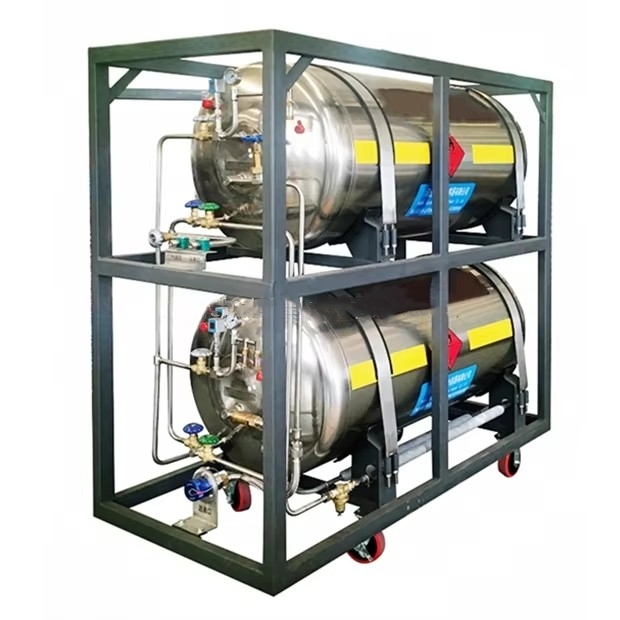

Industria welded insulated cylinders(Horizontal410L-499L)
Specifications		DPL650-V-1.44		DPL650-V-2.3
Geometric Volume（L）		410	499	499
Effective Volume（L ）		369	449	449
Working Pressure（MPa）		1.44		2.3
Relief valve setting（MPa）		1.72		2.76
Rupture disc setting （MPa）		2.6		3.9
Outside diameter（mm）		Φ706
Size（L×W×H）mm		1777×770×1035	2045×770×1035	2045×770×1035
Empty weight（kg）		~300	~335	~410
Filling Weight (kg)	LO2	~~	~512	~511
	LN2	~~	~364	~364
	LAr	~~	~629	~629
	LNG	~157	~191	~~
	LCO2	~~	~~	~487
NER（%Per Day）		1.8	1.7	1.7
Level Gauge		Digital display
