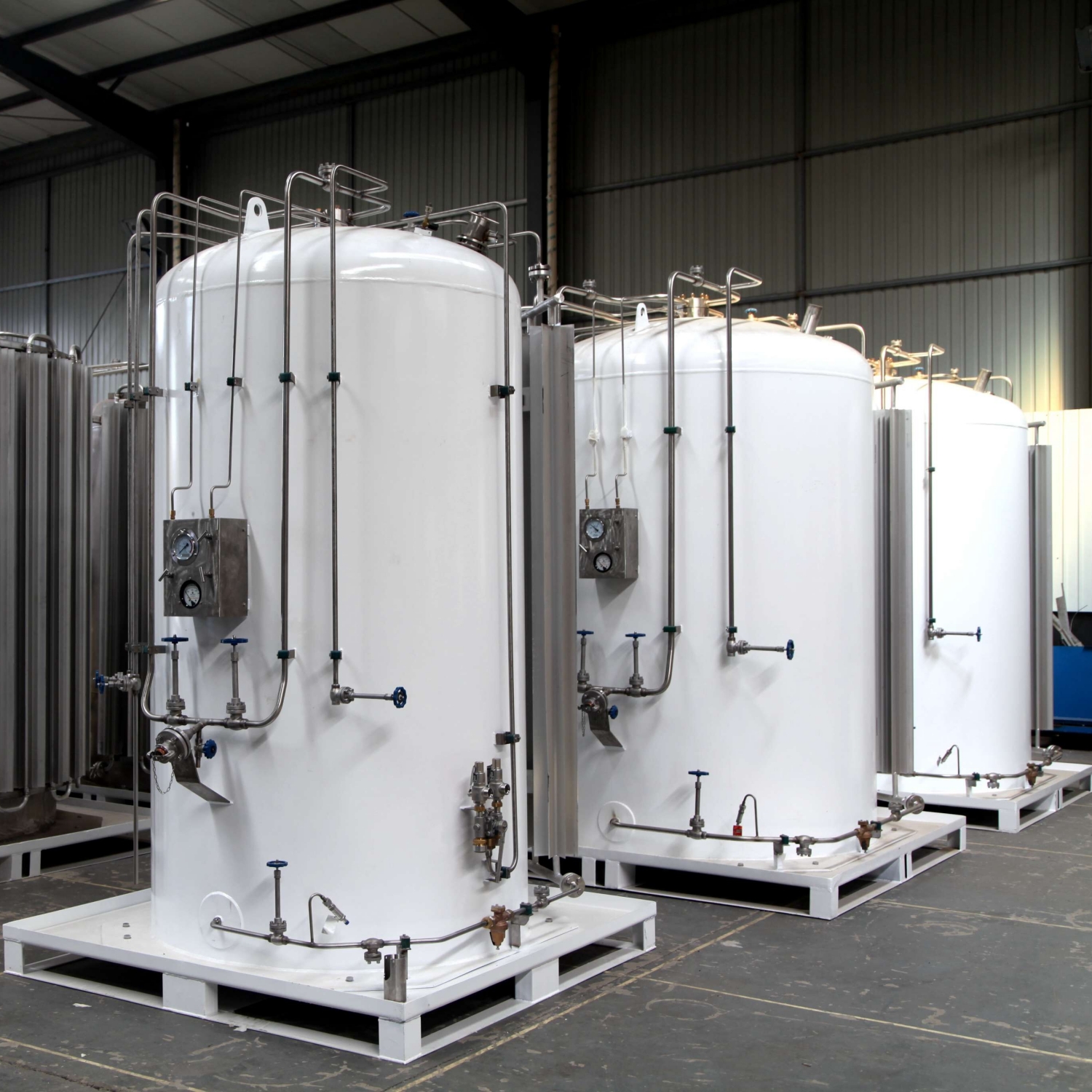

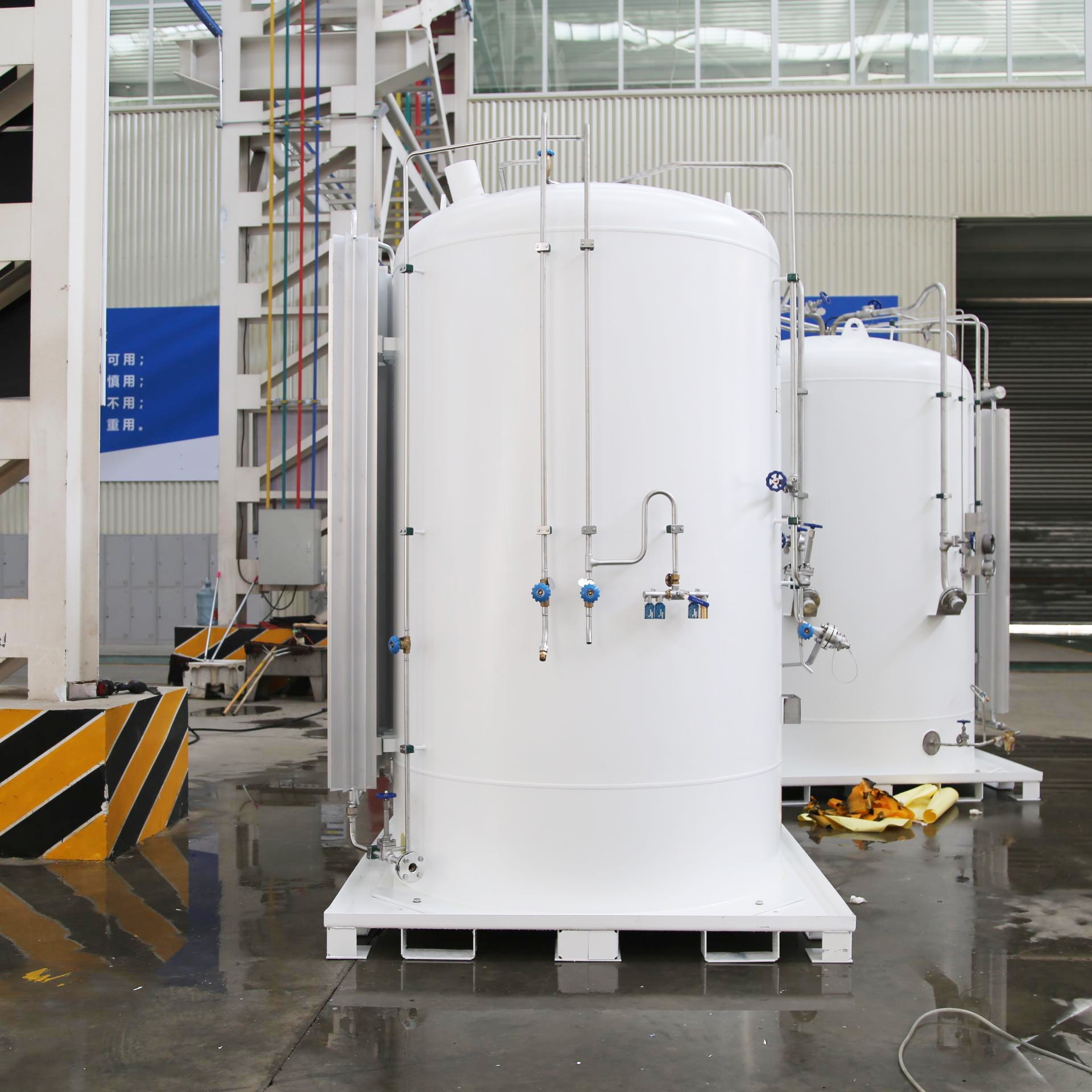

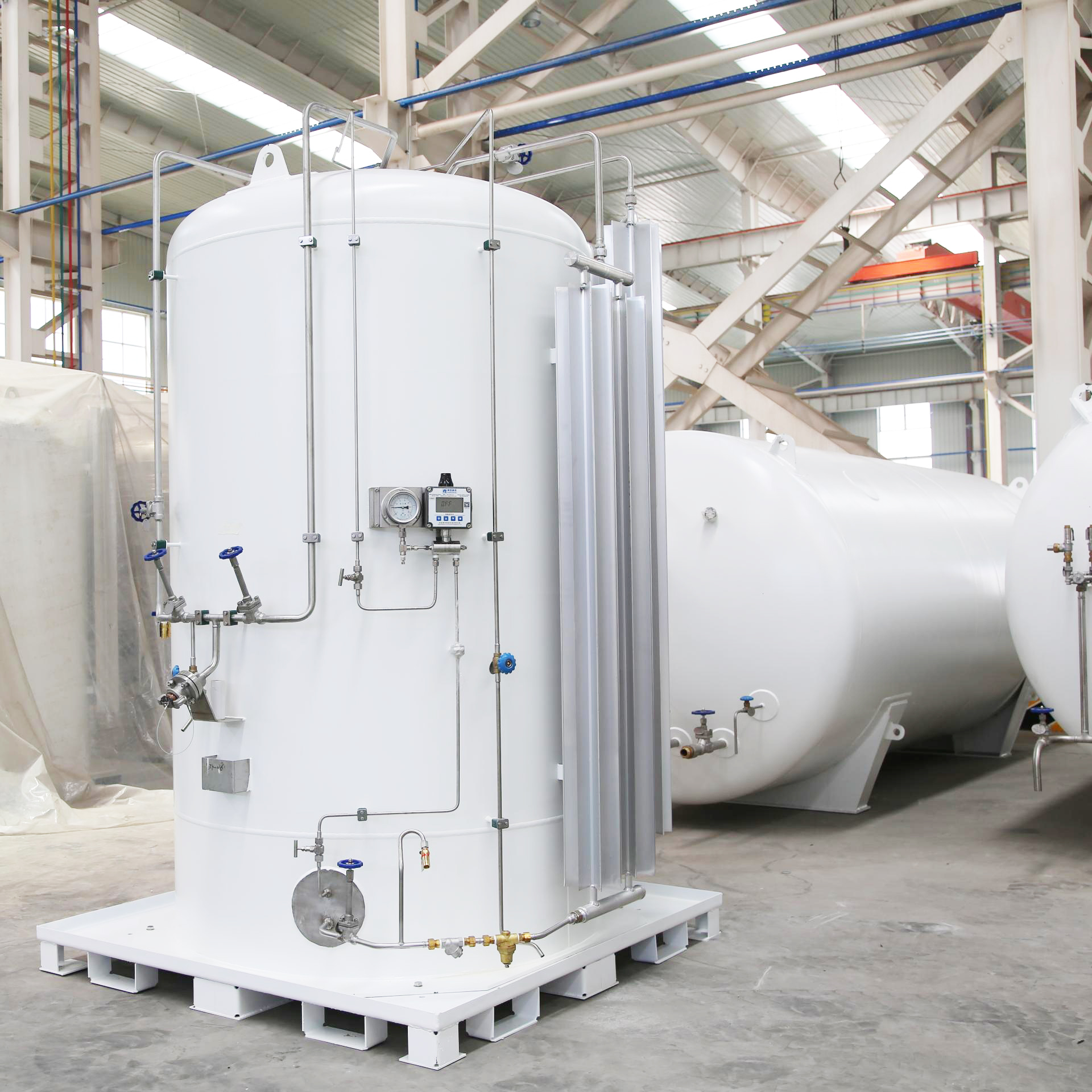

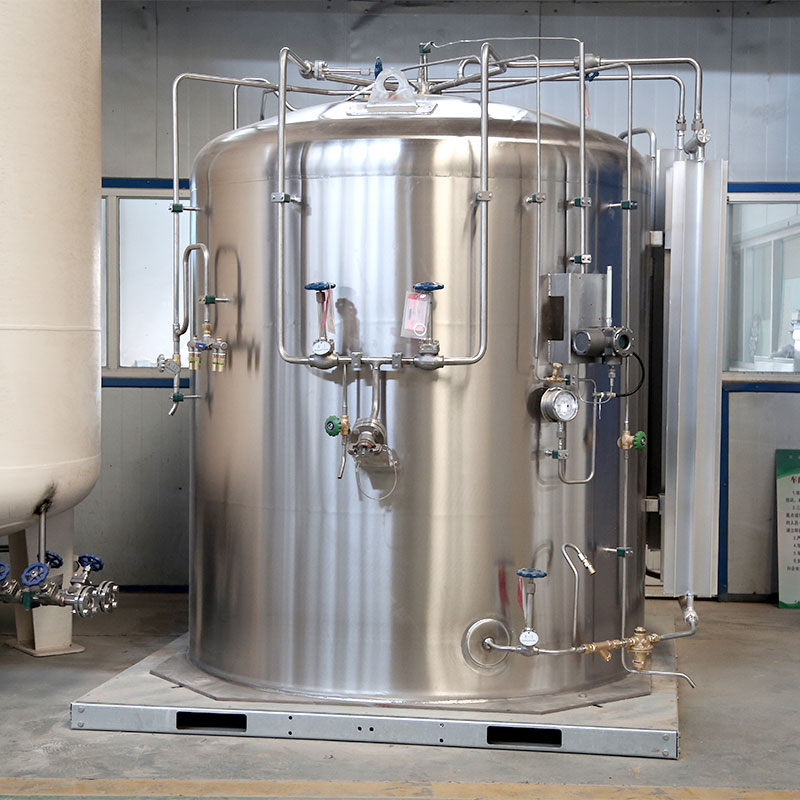

Microbulk Tank

Product Overview

The Microbulk Tank is a compact cryogenic liquid gas supply system that integrates liquid storage, vaporization, and gas supply functions into a single unit. It is designed to provide a reliable and efficient gas supply solution for a wide range of industrial and commercial applications.

With its integrated and space-saving structure, the system combines a cryogenic storage vessel, vaporization unit, and gas supply control components on one platform, allowing users to obtain a stable and continuous supply of liquid or gaseous media.

The system features an efficient insulation structure and advanced metering technology, enabling excellent thermal performance while providing precise gas measurement. Users can perform on-site gas consumption measurement and settlement, reducing transportation and weighing procedures and improving operational efficiency. In addition, the system supports optional remote monitoring functions for real-time monitoring and management of operating status and liquid levels.

The Microbulk Tank can be used for the storage and supply of various cryogenic media such as liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas, making it widely applicable in industrial production and commercial gas supply systems.

Working Principle

The Microbulk Tank adopts a double-layer vessel structure. The inner vessel stores the cryogenic liquid, while the outer shell provides mechanical protection and forms an insulated space. A high-vacuum interlayer combined with multilayer insulation effectively reduces heat transfer from the external environment, thereby minimizing evaporation loss of the cryogenic liquid.

The stored cryogenic liquid is delivered through a piping system to a vaporizer, where it absorbs ambient heat and converts into gas. The gas is then supplied to downstream equipment through a pressure control system, ensuring stable and continuous output.

The system is equipped with a precision metering device that continuously monitors liquid consumption, enabling accurate on-site measurement and management. In addition, a remote liquid level monitoring system can transmit operating data to a remote platform, allowing Internet of Things (IoT) based monitoring and improved operational management.

Key Features

• Compact integrated structure combining storage, vaporization, and gas supply functions for convenient installation and operation
• High-vacuum multilayer insulation structure with excellent thermal performance and reduced evaporation loss
• High-precision metering device enabling on-site gas measurement and usage management
• Optional remote monitoring system for real-time monitoring of liquid level and operating status
• Capable of rapidly supplying liquid or gaseous media to meet diverse gas demand requirements
• Simple operation and easy maintenance for improved daily gas usage efficiency
• Reduces the need for frequent cylinder replacement, saving time and resources
• Stable and reliable gas supply, offering higher efficiency and lower operating cost compared with traditional cylinder supply methods

Applications

• Laser Processing Industry:Provides industrial gas supply for laser cutting equipment, ensuring stable processing operations.
• Aquaculture Industry:Supplies gas for water oxygenation systems to improve aquaculture environments.
• Medical Institutions:Used for hospital oxygen supply and related medical gas systems.
• Metal Processing and Welding:Provides stable gas supply for welding, cutting, and other metal processing processes.
• Food Processing Industry:Supports cryogenic media supply for food freezing and low-temperature processing.
• Industrial Manufacturing:Suitable for ceramic factories, boiler retrofit projects, and various industrial gas applications.
• Catering and Commercial Sectors:Provides stable gas supply solutions for hotels, restaurants, and other commercial facilities.
